Effective and economic system suitable for general office application

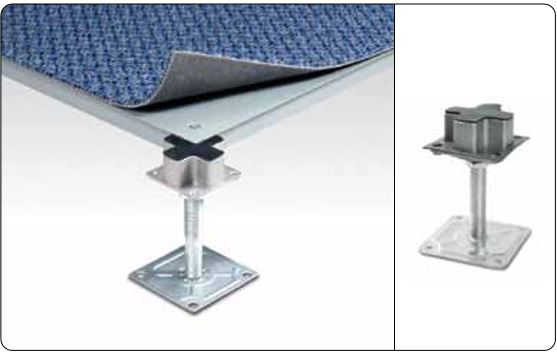

Mechanically fastens each floor panel to the pedestal at all four corners ensuring rigidity, lateral stability.

Fasteners securely lock down panels provide firmness and stability.

PVC pedestal pad eliminate noise due to metal to metal contact. Enhance acoustical performance for quiet comfort and solid feel under fool.

Recommended Floor Height : 100mm to 300mm

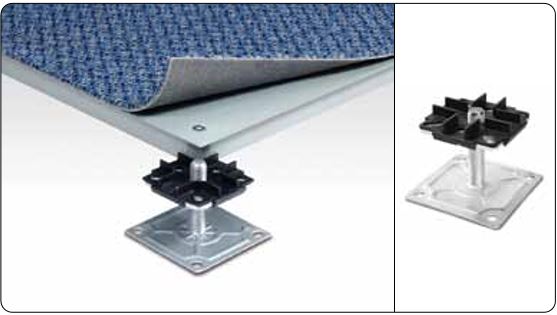

LOW LOCK (LL)

Identical performance as the Corner Lock System

Effective and suitable for fir-out works with low height limitation.

Available in finished floor height from 70mm to 100mm.

Recommended Floor Height : 70mm to 100mm

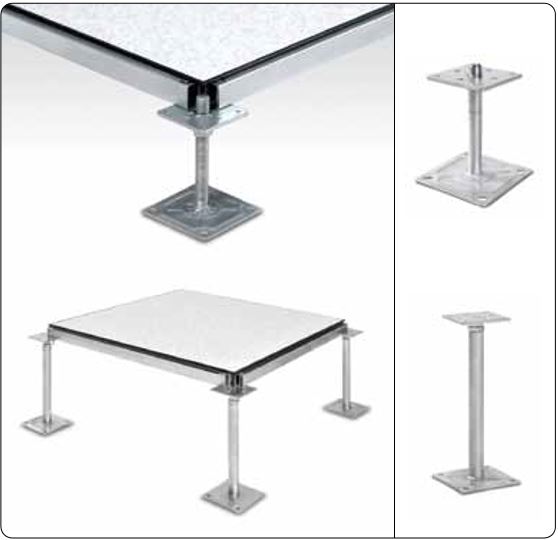

RIGID GRID BOLTED STRINGER (RGBS)

Designed to withstand high lateral forces caused by intermittent starting and stopping of rolling loads.

Suitable for computer room, data center, industrial applications and equipment area.

Panels are gravity held in position on understructure allowing fast removal and replacement for maintenance.

MT all steel box stringer provide lateral resistant to heavy rolling load.

Recommend Floor Height : 150mm to 700mm

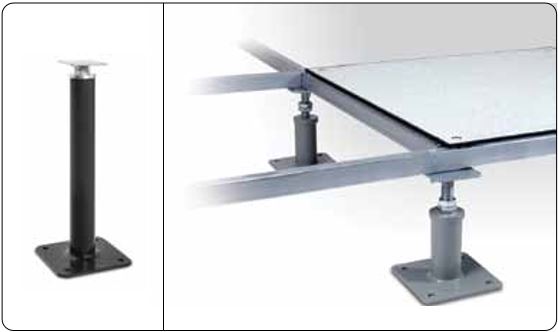

RIGID GRID BOLTED STRINGER WITH CORNER LOCK

The system provide vibration resistant installation for industrial and sock resistance application.

Full mechanical bolted design with heavy duty MHP pedestal on Rigid Grid configuration maximise system stability.

Suitable for application in seismic zone, heavy duty industrial requirement and CD (Civil Defence) facilities.

Recommended Floor Height : 300mm to 1600mm

* For any requirement of height exceeding 1600mm, please contact microtac for technical details.

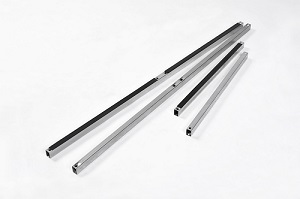

MT STEEL STRINGER

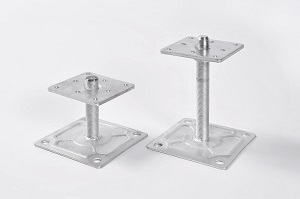

MAP PEDESTAL

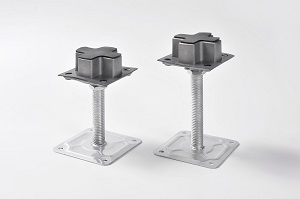

MLP PEDESTAL

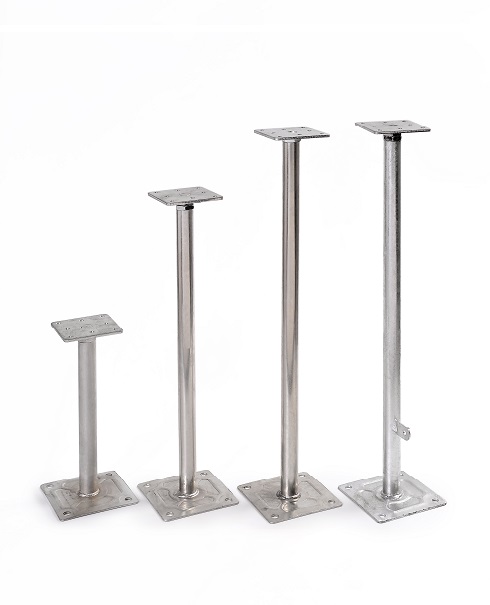

MSP PEDESTAL

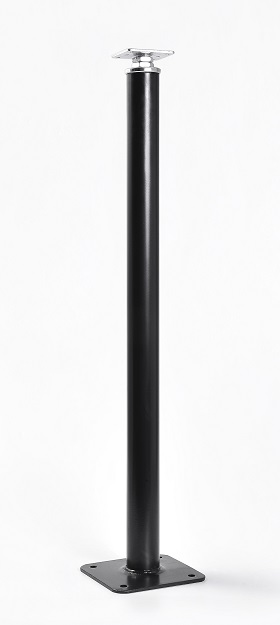

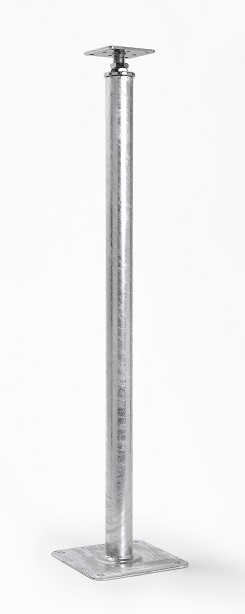

MHP PEDESTAL
